T-Rest

  • Prize
    Winner in Sport Equipment Design / Mountaineering, Climbing, Hiking
  • University
    L'École De Design Nantes Atlantique
  • Lead Designer
    Martin Paillisson
  • Other Designer(s)
    Auriane Olivier - Inès Oligo - Paul Blanc - Thibault Maupeu
  • Design Status
    Concept

Description
Our product combines the functionality of a tarp with the comfort of a hammock. It features a 3 meters by 3 meters canvas that serves as a conventional tarp when needed. However, its key advantage lies in its design, which allows it to be easily configured into a hammock setup with integrated protection against the elements. To achieve this configuration:

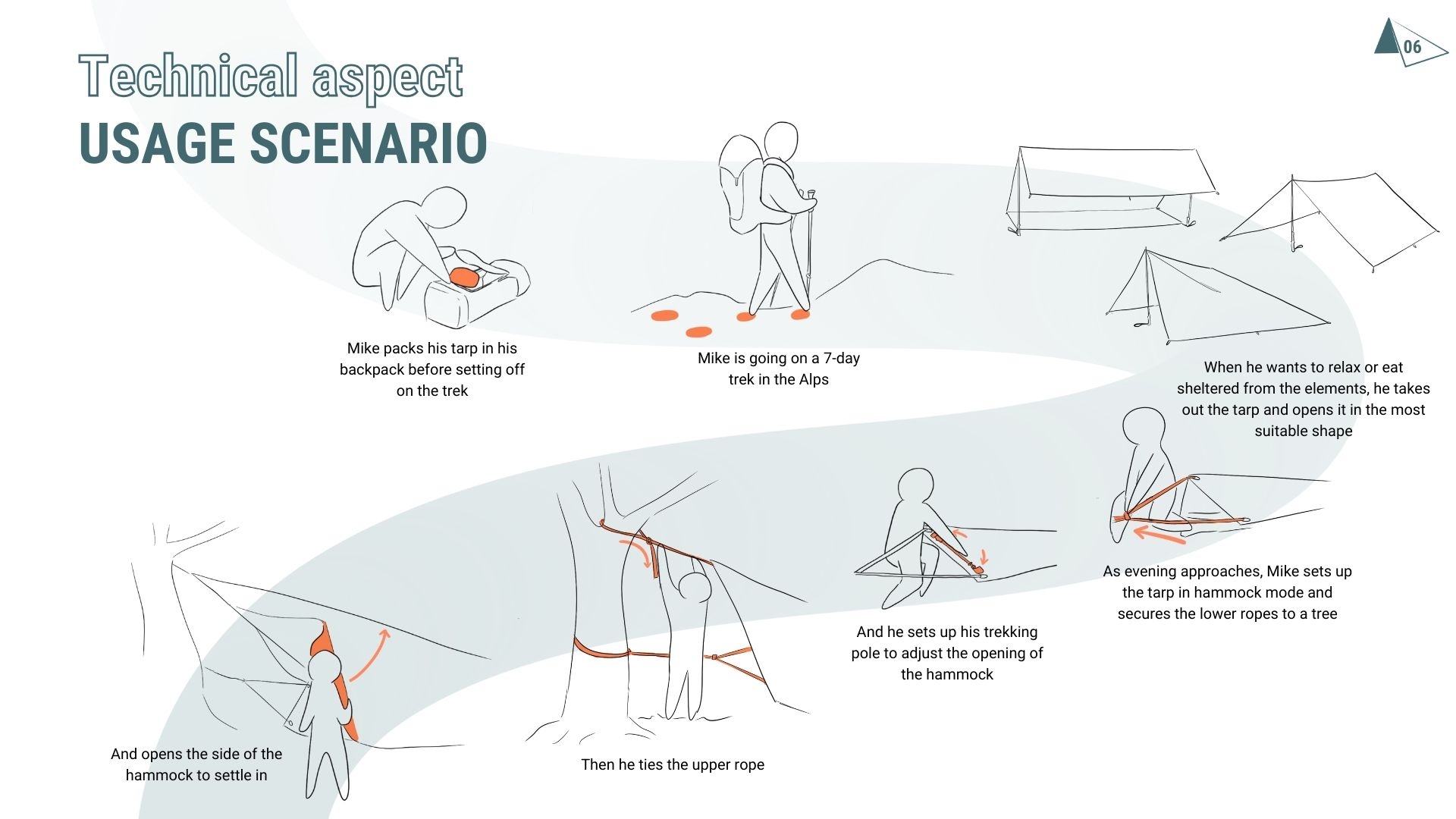

1 - Position your walking stick at the base of the sleeping triangle to provide structural support.

2 - Secure the two opposite corners of the tarp, similar to setting up a hammock, using ropes stretched between two trees.

3 - Attach the remaining corner at a higher point to create a roof for the hammock.

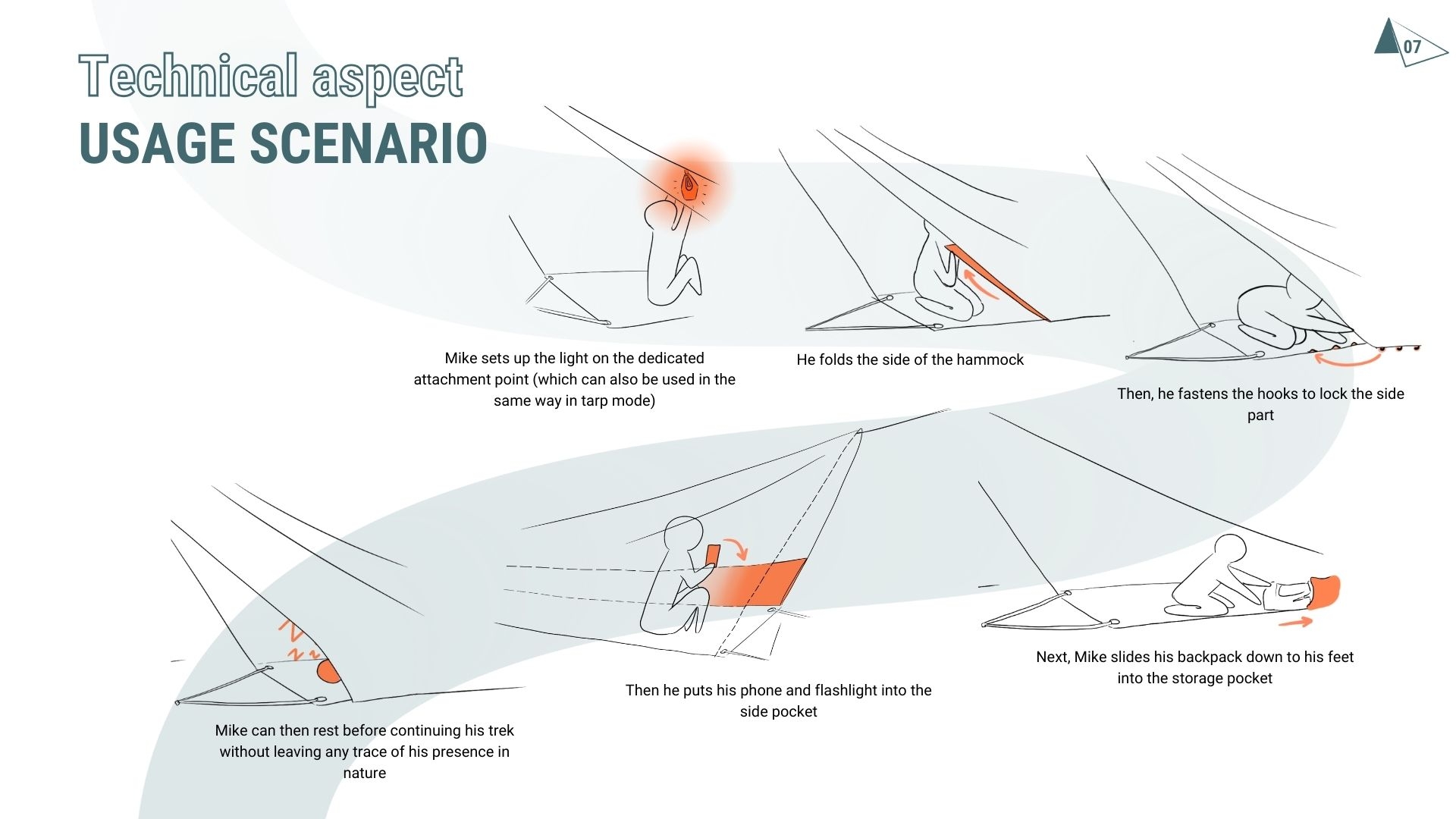

(Detailed instructions and visual aids are available in accompanying photos.)

Innovation
Streamlined and minimalist, our concept is designed to minimize environmental impact at bivouac sites, particularly by leaving no footprint on the ground in its "hammock" configuration. Furthermore, we prioritized durability by eschewing the use of zippers or Velcro, which could have compromised the product's overall lifespan. The essence of our low-tech approach lies in repurposing an existing object—the tarp—by imbuing it with a new functionality, thus curtailing the need for an expanded product range.

Product Detail

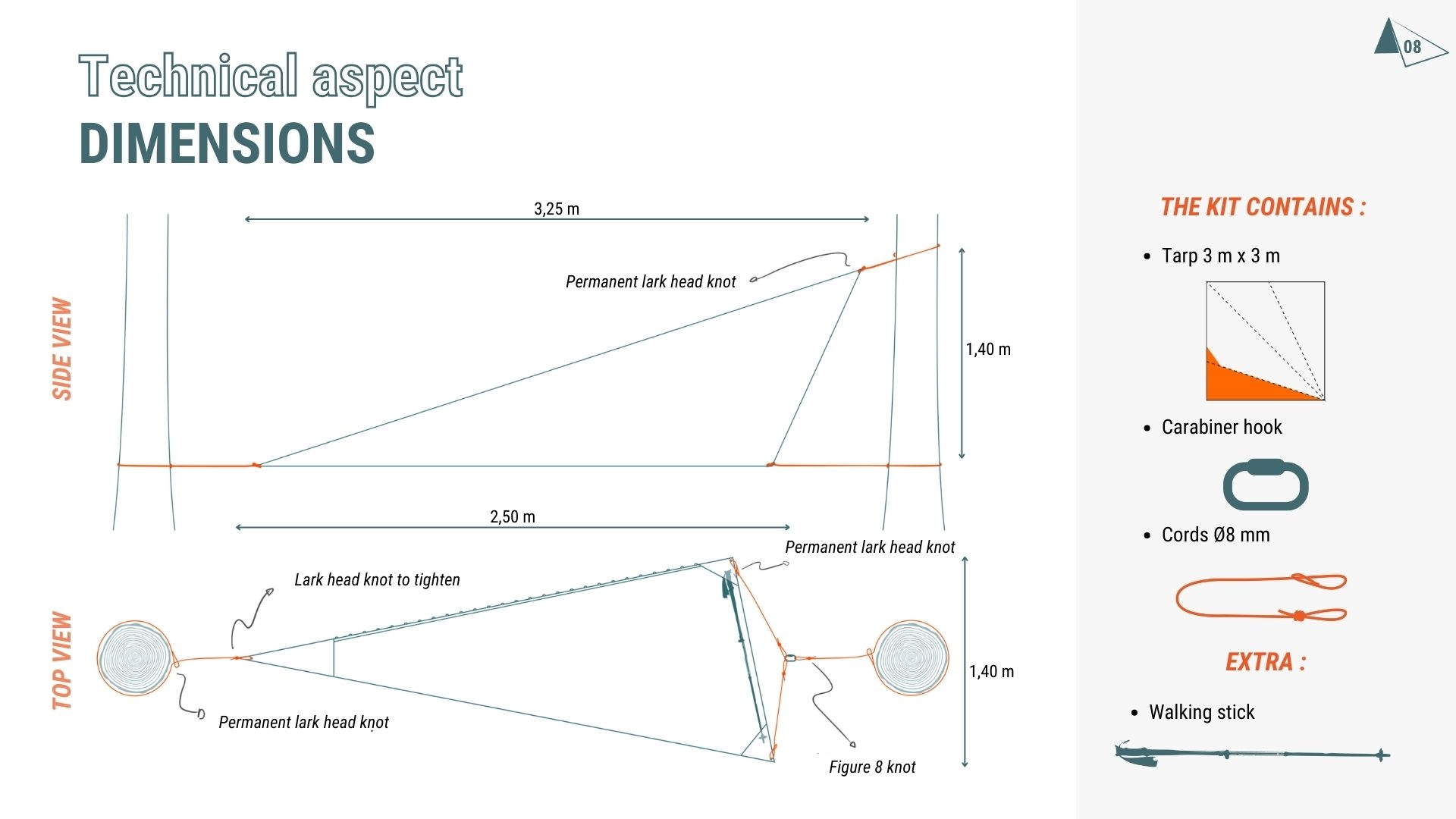

The core of the concept centers on a tarp equipped with 8mm diameter ropes, a single carabiner (of the quick link variety), and the repurposing of a walking stick for structural reinforcement. Constructed from water-repellent nylon ripstop and nylon cords, the tarp aims to embody simplicity and intuitiveness by minimizing the number of components required.

Specification
The tarp, measuring 3 meters by 3 meters, is available in a single size and color scheme: a subtle light gray with accents of orange to highlight specific areas of use. Our minimalist product strives to be gender-neutral, reflecting a commitment to inclusivity. The estimated total weight is 550 grams, excluding the carabiner and walking stick.

Bio
Industrial designer on soft product
